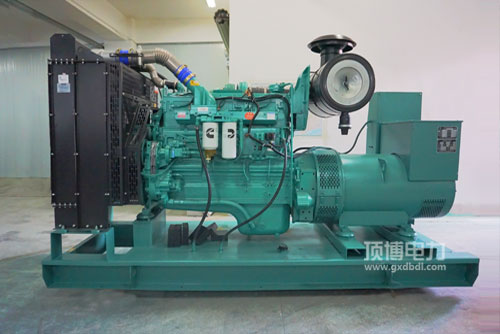

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机柴油生活性好: 好的柴油把控好体系，特有的STC、ESTC 分等级把控好体系，独特定制的缸筒边侧进行发动机挥发室，直流电喷涌柴油，积极主动做雾化，进行挥发积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用汽车发思想瞬态性优良: 好看的汽车发思想一体化定制，能默契配合康明斯独特性的EFC系统的，把握精确度提高，加载失败期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用打着机升电率高: 整个制定紧密.内部结构安排适当合理，加载平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50能够满足国家非主干道三、的阶段及北美洲Tier2. Tier 3减排政策法规规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可获性好， 打着机工作及维修养生保健养生保健快速，的费用少。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率范围内 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯生产发电用发起机的性能：大小小， 压缩视频比低， 喷淋喷嘴空气中升温，易开机启动，移动式车载多媒体供电的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发思想材质	通常用工作电压(kW)Prime Power	预留电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
